TTMSFNCGanttChart
Breaking Change Between v1.2.0 and v1.2.1
The Task property UseWorkingHours has been changed to WorkTimePolicy. By default this was set to True and this behavior remains unchanged with the new property. However, if UseWorkingHours was previously set to False, this setting was stored in the project file and will now cause an error when attempting to open the project. To resolve this issue, you can safely ignore the error and set the WorkTimePolicy property of the task to whAllTime to replicate the original behavior.

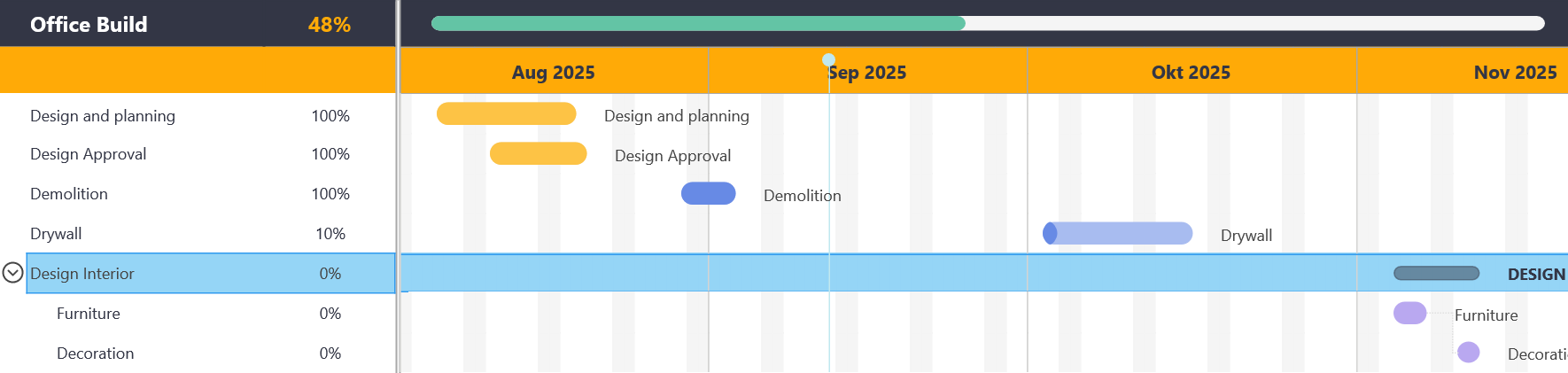

A Gantt chart is a project management tool assisting in the planning and scheduling the different tasks of projects. They are particularly useful for visualising projects. It helps to see the connection between the activities over time. And is a useful tool to track the progress.
When dropping a new instance of the TTMSFNCGanttChart on the form, the gantt chart is initialized with some sample data, this contains some tasks, a work time configuration and the default states.
Properties
| Property name | Description |
|---|---|
Adapter |
Activates the adapter and displays the data from the dataset when the dataset is active. |
Appearance |
The visual settings as different fill colors and strokes of the control. |
| BitmapContainer | When true, automatically retrieves the fields from the dataset and creates series for each field. (Default True.) |
Interaction |
Can be set to indicate on which row the headers are defined. (Default 0) |
| ItemPopupMenu | The item popup is triggered when you right-click on an item in the timeline. |
| PopupMenu | The popup is triggered when you right-click on the control. |
Project |
The project with all of the information on the tasks, work time and states. |
TaskListOptions |
Different settings for the task list control. |
TimeLineOptions |
Different settings for the timeline. |
Methods
| Method name | Description |
|---|---|
| BeginUpdate | Blocks the full calculation cycle before setting multiple properties. Must be combined with EndUpdate. (This improves the performance of the control.) |
| EndUpdate | Forces to calculate and update all of the settings after setting multiple properties. Must be called after a BeginUpdate. (This improves the performance of the control.) |
| GetNextTask(ATask: TTMSFNCGanttTask; ASameParent: Boolean = False) | Retrieves the next task in the WBS order, with the parameter you can choose to stay within the same parent task. |
| GetNextVisibleTask(ATask: TTMSFNCGanttTask; ASameParent: Boolean = False) | Retrieves the next task in the timeline, with the parameter you can choose to stay within the same parent task. |
| GetPreviousTask(ATask: TTMSFNCGanttTask; ASameParent: Boolean = False) | Retrieves the previous task in the WBS order, with the parameter you can choose to stay within the same parent task. |
| GetPreviousVisibleTask(ATask: TTMSFNCGanttTask; ASameParent: Boolean = False) | Retrieves the previous task in the timeline, with the parameter you can choose to stay within the same parent task. |
| GetRowByPoint(APoint: TPointF) | Returns the index of the task based on a position. |
| GetRowByTask(ATask: TTMSFNCGanttTask) | Returns the index of the given task. |
| GetRowByXY(AX: Single; AY: Single) | Returns the index of the task based on a position. |
| GetSelectedRow | Returns the index of the selected task. |
| GetTaskByRow(ARow: Integer) | Returns the task of the given index. |
| GetTasksCount | Gives the total number of tasks in the current project. |
| LoadTasksFromCSVData | Load the tasks from a CSV File. |
| LoadTasksFromCSVStream | Load the tasks from a CSV as a memory stream. |
| LoadTasksFromJSONFile | Load the tasks from a JSON File. |
| LoadTasksFromJSONStream | Load the tasks from a JSON memory stream. |
| SaveTasksToCSVData | Save the tasks as a CSV File. |
| SaveTasksToJSONFile | Save the tasks as a JOSN File. |
| SaveTasksToCSVStream | Save the tasks as a JSON to a memory stream. |
| SelectNextTask(ASameParent: Boolean = False) | Selects the next task in the WBS order, with the parameter you can choose to stay within the same parent task. |
| SelectNextVisibleTask(ASameParent: Boolean = False) | Selects the next task in the timeline, with the parameter you can choose to stay within the same parent task. |
| SelectPreviousTask(ASameParent: Boolean = False) | Selects the previous task in the WBS order, with the parameter you can choose to stay within the same parent task. |
| SelectPreviousVisibleTask(ASameParent: Boolean = False) | Selects the previous task in the timeline, with the parameter you can choose to stay within the same parent task. |
| SelectTask(ATask: TTMSFNCGanttTask) | Select a task in the task list and timeline. |
| SelectTaskByRow(ARow: Integer) | Select a task based on the index in the timeline. |
| SetSampleData | Fills the Project of the Gantt Chart with some sample tasks and settings. |
| ShowTaskEditor(ATask: TTMSFNCGanttTask) | Executes the task editor for the requested task. |
| UpdateGanttChart | Updates the gantt chart settings and appearance. |
Events
| Event name | Description |
|---|---|
| OnAddGanttTaskListTask | Event to choose whether to add the task to the list or not. |
| OnAfterAddGanttTaskListColumn | Event to do additional actions after the column was added in the task list. |
| OnAfterDrawGanttTimeLineDependency | Event to manipulate the dependency line after drawing. |
| OnAfterDrawGanttTimeLineDependencyArrow | Event to manipulate the dependency arrow after drawing. |
| OnAfterDrawGanttTimeLineEventMarker | Event to manipulate the timeline event marker after drawing. |
| OnAfterDrawGanttTimeLineGroupTime | Event to manipulate the group time area after drawing. |
| OnAfterDrawGanttTimeLineGroupTimeText | Event that is triggered after the group time text was drawn. |
| OnAfterDrawGanttTimeLineItem | Event to manipulate the timeline item after drawing. |
| OnAfterDrawGanttTimeLineItemLeftGrip | Event to manipulate the left grip in a timeline item after drawing. |
| OnAfterDrawGanttTimeLineItemProgress | Event to manipulate the timeline item progress after drawing. |
| OnAfterDrawGanttTimeLineItemRightGrip | Event to manipulate the right grip in a timeline item after drawing. |
| OnAfterDrawGanttTimeLineItemText | Event that is triggered after the timeline item text was drawn. |
| OnAfterDrawGanttTimeLineTime | Event that is triggered after the time text was drawn. |
| OnAfterMoveTimeLineTask | Event to do additional after the move of the tasks. |
| OnAfterShowTaskPopup | Event that is triggered after closing the item popup menu. (Not available in TMS WEB Core.) |
| OnAfterSizeTimeLineTask | Event to do additional after setting the size of the tasks. |
| OnBeforeAddGanttTaskListColumn | Event to configure the column in the task list. |
| OnBeforeDrawGanttTimeLineDependency | Event to manipulate the drawing of the dependency line. |
| OnBeforeDrawGanttTimeLineDependencyArrow | Event to manipulate the drawing of the dependency arrow. |
| OnBeforeDrawGanttTimeLineEventMarker | Event to manipulate the drawing of the timeline event marker. |
| OnBeforeDrawGanttTimeLineGroupTime | Event to manipulate the drawing of the group time area. |
| OnBeforeDrawGanttTimeLineGroupTimeText | Event to manipulate the drawing of the group time text. |
| OnBeforeDrawGanttTimeLineItem | Event to manipulate the drawing of the timeline items. |
| OnBeforeDrawGanttTimeLineItemLeftGrip | Event to manipulate the drawing of the left grip in a timeline item. |
| OnBeforeDrawGanttTimeLineItemProgress | Event to manipulate the drawing of the timeline item progress. |
| OnBeforeDrawGanttTimeLineItemRightGrip | Event to manipulate the drawing of the right grip in a timeline item. |
| OnBeforeDrawGanttTimeLineItemText | Event to manipulate the drawing of the timeline item text. |
| OnBeforeDrawGanttTimeLineTime | Event to manipulate the drawing of the time area. |
| OnBeforeMoveTimeLineTask | Event to manipulate the move action of the tasks. |
| OnBeforeShowTaskPopup | Event that is triggered to configure the item popup menu before showing. (Not available in TMS WEB Core.) |
| OnBeforeSizeTimeLineTask | Event to manipulate the size action of the tasks. |
| OnDrawStartSizeIndicator | Event to choose to draw the sizing indicator at starttime. |
| OnDrawEndSizeIndicator | Event to choose to draw the sizing indicator at endtime. |
| OnGanttTaskAdded | |
| OnGanttTaskChanged | Event that indicates when a task is changed. |
| OnGanttTaskListTaskAnchorClick | Event to retrieve the anchor text that was clicked in the task list. |
| OnGanttTaskListTaskClick | Event to retrieve the text and column of the task that was clicked in the task list. |
| OnGanttTaskSelected | Event that is triggered after a task was selected. |
| OnGanttTimeLineItemClicked | Event that is triggered when an item in the timeline is clicked. |
| OnGanttTimeLineItemDoubleClicked | Event that is triggered when an item in the timeline is doubleclicked. |
| OnGanttProjectChanged | |
| OnGetTaskHintText | |
| OnSetGanttListTaskColumnText | Event customize the text in the task list. |
| OnTaskEditorShow | Event that is triggered when the task editor is shown. |
| OnTaskEditorClosed | Event that is triggered when the default task editor is closed. |
TTMSFNCGanttChartAppearance
The visual configuration of the control can be set with these properties.
Properties
| Property name | Description |
|---|---|
| DefaultItemAppearance | The appearance that will be used when no other options or set. And when a task is created. |
| DefaultParentAppearance | The appearance that will be used for tasks which have a subtask. |
| DependencyLine | The settings for the line that is drawn when there is a relationship between tasks. |
| HeaderHeight | The height of the task list and timeline header. |
| ItemHeight | The height of the tasks. |
Options |
Different settings for the drawing of the control. |
| SplitterAppearance | The settings that are specific to the appearance of the splitter. |
| SplitterWidth | The width of the splitter. |
| TaskListAppearance | The settings that are specific to the appearance of the task list. |
| TaskListWidth | The initial size of the task list. |
| TimeLineAppearance | The settings that are specific to the appearance of the timeline. |
| UnscheduledItemAppearance | The appearance that will be used when the task has no start date set. |
TTMSFNCGanttChartAppearanceOptions
Some options to quickly change the visuals of the control.
Properties
| Property name | Description |
|---|---|
| DrawHoverItem | Indicates whether the hovered item should be drawn. |
| DrawParentTasks | Indicates if the parent tasks are shown in the timeline. |
| DrawSelectionGrip | Indicates if the indicators on the side of the timeline item should be drawn when the task is selected. |
| DrawTaskName | Indicates if the task name should be drawn in the timeline item. |
| DrawTasksByState | Indicates if the task should be drawn based on the appearance set in the state. |
| DrawUnscheduledTasks | Indicates whether to draw the tasks with no start date. |
| ShowProgress | Indicates if the progress of the task is drawn. |
| UseDefaultAppearance | Indicates to use the configured DefaultItemAppearance. |
| UseParentAppearance | Indicates to use the configured DefaultParentAppearance. |
TTMSFNCGanttChartInteraction
Settings for how the gantt chart items react on user interaction.
Properties
| Property name | Description |
|---|---|
| EnableMoveTasks | Indicates whether it is possible for the user to move the task with mouse or keyboard. (Default True.) |
| EnableSizeTasks | Indicates whether it is possible for the user to change the start or end date of the task with mouse or keyboard. (Default True.) |
| JumpToSelectedItemStartDate | Indicates whether clicking on a row moves the timeline to show the item. (Default True.) |
| SelectItemOnRowClick | Indicates whether clicking on a row selects it or not. (Default True.) |
| ShowEditorLockedProperty | Indicates whether the task editor shows the property to lock or unlock a task. (Default True.) |
| ShowEditorOnF2Press | Indicates whether the task editor is shown when F2-key is pressed. (Default True.) |
| ShowEditorOnDoubleClick | Indicates whether the task editor is shown when a timeline item is double clicked. (Default True.) |
TTMSFNCGanttProject
The TMS FNC Gantt Chart creates a default project by default. But it is possible to assign other TTMSFNCGanttProjects to the Gantt Chart.
The project stores the different tasks, states and the work time.
TTMSFNCGanttTaskListOptions
Settings to configure the task list of the gantt chart.
Properties
| Property name | Description |
|---|---|
Columns |
A collection of Columns that are shown in the task list. |
| DateFormat | The date format that will be used for the start and end date in the task list. |
| IsVisible | Indicates whether the task list is visible. (Default True.) |
| SizeableColumns | Indicates whether it is possible to size the columns in the task list. (Default False.) |
TTMSFNCGanttTaskListColumn
The configuration of the columns that are shown in the task list. You can set the name to some predefined values to retrieve specific properties from the tasks: wbs, taskname, taskdescription, startdate, enddate, duration, statename, progress, dependencies, datastring, datainteger,databoolean.
If you want to manipulate the text afterwards or want to fill a column with custom data, you can use the OnSetGanttListTaskColumnText event.
Properties
| Property name | Description |
|---|---|
| HeaderText | The text that is shown in the header of the task list. |
| Name | A Collection of Columns that are shown in the task list. |
| Tag | Can be used as preferred, is not used in the internal code. (Default value is 0.) |
| Width | The width of the column if no stretching is used. |
TTMSFNCGanttTimeLineOptions
Settings to configure the timeline of the gantt chart.
Properties
| Property name | Description |
|---|---|
| IsVisible | Indicates whether the timeline is visible. (Default True.) |
| GroupFormat | The date format that will be used for the top tier. |
| GroupSpan | The number of columns that need to be combined of the top tier. (Default 1.) |
| GroupUnit | The unit of the top tier of the timeline. Can be hours, days, weeks, months or years. (Default gtuWeek.) |
| ShowGroup | Indicates wether to top tier is drawn or not. (Default True.) |
| ShowTrackLine | Indicates wether the current time line is drawn. (Default True.) |
| StartOfWeekDay | The start date for if the unit is set to gtuWeek. (Default gdSunday;) |
| TimeLineFormat | The date format that will be used for the timeline unit. |
| TimeLineSpan | The number of columns that need to be combined of the timeline unit. (Default 1.) |
| TimeLineUnit | The unit of the timeline. Can be hours, days, weeks, months or years. (Default gtuDay.) |
| ViewDateEnd | When set the this will be the last date in the timeline. (Default 0, not used.) |
| ViewDateStart | When set the this will be the first shown date in the timeline. (Default 0, not used.) |
